If you aren't sure what size fan or shutters you need,
use our Fan & Shutter CFM Calculator.
Greenhouse
Exhaust Fans and Intake Shutters - Sale
|
Our
exhaust fans are ideal for cooling and providing fresh air inside a greenhouse.
Simply add intake shutters and any of our greenhouse controls, and you will have
all you need to equip your greenhouse with a durable fully automated ventilation
system. More information
about greenhouse ventilation |
Variable Speed Exhaust
Fans
|
Variable
Speed Louvered Exhaust Fan Features:
- Rustproof aluminum shutter frame with built-in interlocking louvers to
reduce heat loss in the greenhouse during cold months.
- Fans come equipped with completely enclosed variable speed direct drive motors
which can be adjusted from 100% to ~35% of CFM if one of our optional
fan speed controls is added. This allows you to reduce fan speed during cold
months minimizing cold air shock to plants. Fans only run at maximum speed without
a speed control.
- Fan motors come prewired with a grounded 9' power cord.
- Fans can be automated with any of our 110/120 volt greenhouse thermostats.
- Fans come with plug but can be hard wired as well. |
3 Speed Exhaust Fans
|
3
Speed Louvered Exhaust Fan Features:
- Rustproof aluminum shutter frame with built-in interlocking louvers to
reduce heat loss in the greenhouse during cold months.
- Fans come equipped with completely enclosed multi-speed direct drive motors
which can be manually adjusted with the built-in 3 speed switch (2 speed
for 24" fan) and 2' extendable pull-chain. This allows you to reduce fan
speed during cold months minimizing cold air shock to plants.
- Fan motors come prewired with a grounded 9' power cord.
- Fans can be automated with any of our 110/120 volt greenhouse plug-in
thermostats.
- Fans are plug-in only and are not setup to be hard wired. |
Intake/Exhaust
Shutters and Motors
|
|
Shutter
Features:
- Rustproof aluminum frame and louvers
- Included louvers are painted white and are lined with weather stripping to provide
quiet operation and reduce heat loss in the greenhouse during cold months.
- Shutters can be equipped with an optional shutter motor to automate them
and prevent wind from opening the louvers when ventilation is not necessary.
Optional Shutter Motor Features:
- Motors mount directly to shutter for easy installation.
- Lowest power usage in the industry of only 2 watts.
- Very quiet. No loud humming commonly found with other shutter motor brands.
- Shutter motors can be used with any of our 110/120 volt greenhouse thermostats
and come setup to be hard wired or prewired with an 3' power cord and plug.
|
|
|
|
Complete
Greenhouse Exhaust Fan Systems
|
|
Choose from a variety of plug-in and hard wire automated exhaust fan systems for greenhouse ventilation and cooling. Just click on the pricing link below for more information. |
Fan
System Wiring Kit Instructions
|
These complete wiring kits
are designed for wiring our variable speed fan systems in greenhouses or other
wet areas. Kits use all rustproof materials which meet or exceed building code
requirements for wet locations when properly installed, and the flexible conduit
makes installation quick and easy. Wiring kit can be wired directly into an existing
electrical line or wired to a power supply cord (included with our fan system
packages) and plugged into an outlet. Fan wiring kits include: flexible conduit,
flex & T connectors, aluminum conduit clamps, 14 gauge wire & wiring nuts,
and installation instructions. Additional accessories for these wiring kits are
available in our Greenhouse Electrical section.
The 25' wiring kit is designed for small greenhouses
using a single intake shutter fan system.
The 50' and 100' kits will work with single or two shutter fan systems and larger
greenhouses.
The Greenhouse Size column below are only recommendations. If you are
not sure which length you need, view our Wiring
Kit Sizing Diagram for additional help.
|

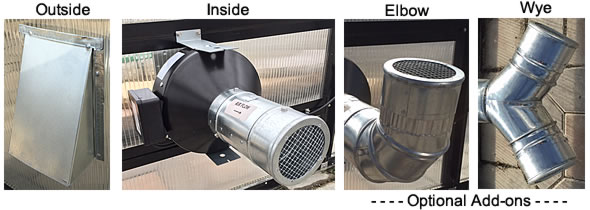

Greenhouse
Intake Fan System
|
|
Provides
fresh air for plants, helps control humidity, & boosts ventilation of roof
vent systems!
These intake fan systems are great for supplying fresh air to plants in the winter
when it is too cold for traditional ventilation systems to run. Just set it on
a timer to run a couple times daily for a few minutes. Bringing in fresh air also
helps keep humidity from getting too high in the winter. The larger 8' intake
fan is best for boosting the ventilation / cooling provided by greenhouses with
roof vent systems by bringing in cooler outside air near the plants and pushing
hot air out of the vents. Both systems come with screens and a built-in damper
to keep out cold air when they are not running. Requires a standard 110/120 volt
outlet. OPTIONS: The adjustable elbow connector allows you to direct
the flow of air up to 90 degrees, and the wye connector splits the air
flow into 2 different directions. An extra screened cap is also included with
the wye connector. A screened exhaust vent with damper is available as
well to provide an air outlet for tightly sealed greenhouses.
Intake fans can be automated with a timer for
fresh air delivery, dehumidistat for humidity
control, or a thermostat for temperature control.
|
|
